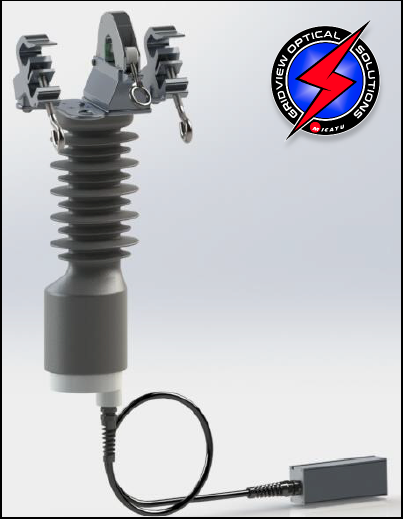

GridView™ Medium Voltage & Current Sensor System - Rg235

The GridView™ Medium Voltage & Current Sensor is a direct replacement for standard potential (voltage) and current transformers. The insulator body is casted in hydrophobic cycloaliphatic epoxy (HCEP) using a state of the art injection molding process. HCEP construction provides superior arc track, ozone, and ultraviolet-resistive properties while maintaining physical strength. The hydrophobic surface properties of HCEP ensure highly reliable performance in wet or humid conditions. All calibration and performance settings are stored in the ruggedized modular electronics enclosure at the base of the optical cable. The m410 Modular Optical Sensor Processor provides a “highly accurate” as well as “low cost” precision solution for distribution grid monitoring and control.


Features include:

All optical Solution for Voltage & Current Measurements:

One SKU for 4kV to 35kV Voltage & Current Classes

Modular, hot-swappable and plug & play

Calibration and offsets are contained within the Rg235 Sensor

Benefits of HCEP:

– Enhanced water shedding properties

Reduced contamination-related leakage

– Improved product quality and reliability

– Improved UV protection

– Results in a more consistent and reliable product

The GridView™ Medium Voltage & Current Sensor System, utilizes a 100% “all optical” measurement platform for unparalleled accuracy and precision of both voltage and current across multiple voltage classes. Installation time for a typical three-phase system, is less than three hours, resulting in significant deployment savings. All signals from the sensor are connected via optical fiber connections to a “plug & play” modular optical sensor platform m410 Modular Optical Sensor Platform, that is fully ruggedized and scalable.
